What is a spring grinding machine? What is its working principle?

Definition and Essential Purpose of a Spring Grinding Machine

A spring grinding machine is a specialized industrial abrasive tool designed specifically to flatten the ends of helical compression springs. In the manufacturing world, springs that exit a coiling machine often have "open" or uneven ends. Without grinding, these springs cannot stand perfectly vertical or distribute weight evenly when compressed. The spring grinding machine removes excess material from the top and bottom coils to create a flat, perpendicular surface.

By squaring the ends, the machine ensures that the spring achieves maximum load axiality and stability. This process is critical for high-performance applications such as automotive valve springs, fuel injector springs, and heavy-duty industrial machinery components where a deviation of even 0.5 degrees in verticality can lead to mechanical failure or uneven wear.

The Working Principle of Spring End Grinding

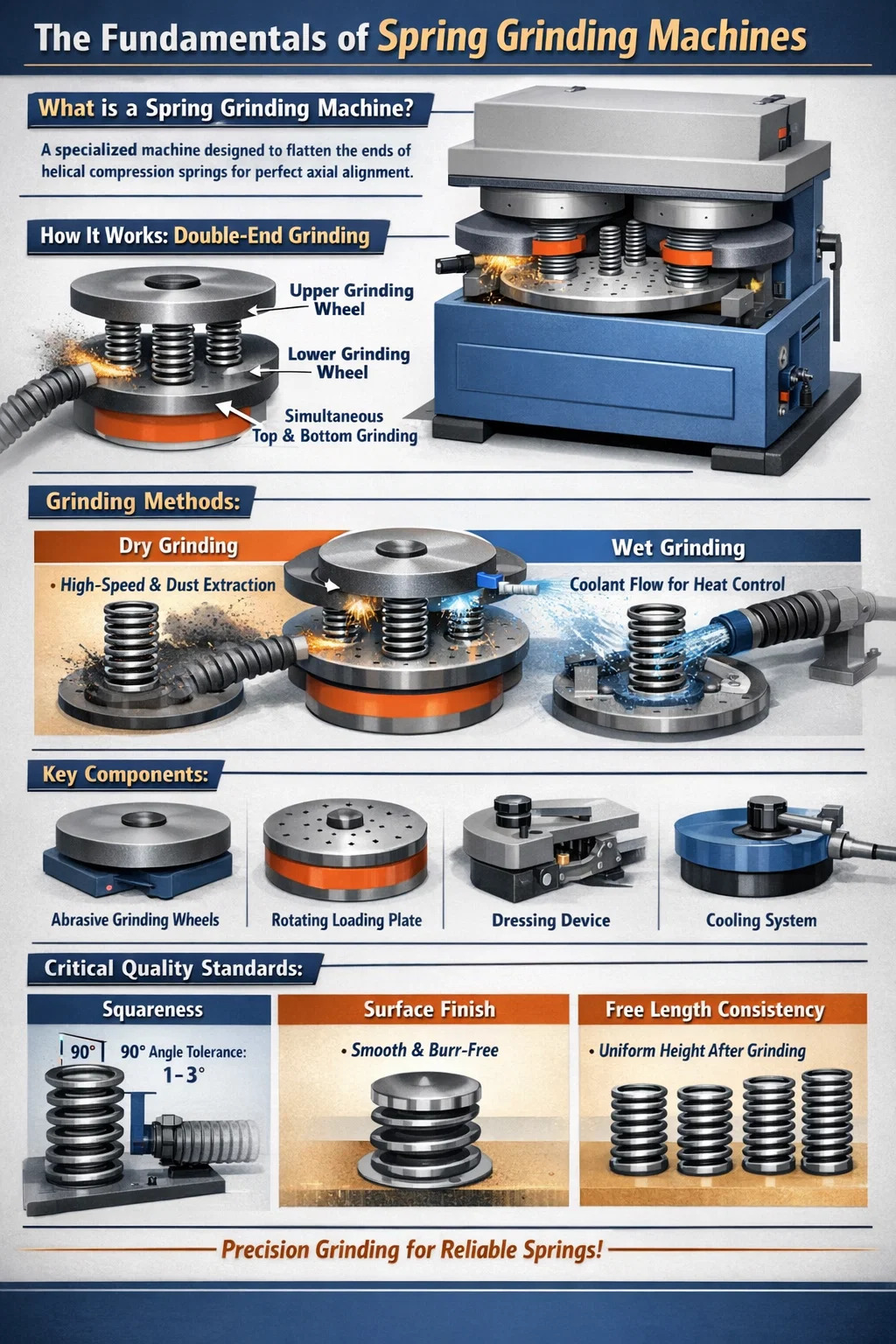

The fundamental working principle of a spring grinding machine involves the relative motion between the spring and two high-speed rotating abrasive wheels. Most modern machines utilize a double-end grinding approach, meaning both the top and bottom of the spring are processed simultaneously.

The Feeding and Loading Mechanism

Springs are loaded into a circular rotating device known as the loading plate or feed disk. This plate contains multiple holes or fixtures designed to hold the springs securely in a vertical position. As the loading plate rotates, it carries the springs into the grinding zone located between the upper and lower grinding wheels.

Abrasive Material Removal

The grinding wheels are positioned at a specific distance from each other, corresponding to the desired final free length of the spring. When the spring passes between the rotating wheels, the abrasive surfaces shave off the tip of the wire on both ends. The friction generates significant heat, so the speed of the loading plate and the grit of the wheel must be perfectly calibrated to avoid thermal damage or "burning" of the spring steel.

Sequential vs. Continuous Grinding

Some machines use a "pass-through" method where springs move continuously through the wheels, while others use an "in-feed" method. In the in-feed system, the wheels move vertically toward the springs while the loading plate stays in a fixed position, allowing for extremely precise control over the grinding pressure and material removal rate.

Key Technical Components of a Spring Grinding Machine

The efficiency of the spring grinding machine depends on several high-wear components that must handle intense mechanical stress and heat.

Types of Grinding Methods: Dry vs. Wet

Depending on the material of the spring and the required precision, engineers choose between two primary methods of operation for the spring grinding machine.

Dry Grinding

Dry grinding is the most common method for standard carbon steel springs. It relies on a high-volume dust extraction system to remove metal shavings and abrasive particles. While efficient for high-speed production, dry grinding can lead to excessive heat buildup if the feed rate is too aggressive, potentially altering the spring's tempering.

Wet Grinding

Wet grinding involves the continuous application of a coolant (water-soluble oil or synthetic fluid) directly onto the grinding interface. This method is used for stainless steel or heat-sensitive alloys. The coolant prevents the wire from reaching critical temperatures, ensures a smoother surface finish, and extends the life of the grinding wheel.

Operational Standards and Quality Control

A spring grinding machine must be meticulously maintained to ensure the quality of the final product. Manufacturers focus on three main metrics during the grinding process:

• Squareness: The angle between the ground end and the spring axis should be as close to 90 degrees as possible. Standard industrial tolerance is usually within 1 to 3 degrees.
• Surface Finish: The ground area should be smooth and free of burrs. Rough surfaces can cause friction against the spring's seat, leading to premature wear.
• Free Length Consistency: After grinding, all springs in a batch must have a consistent height. Modern CNC spring grinding machines use electronic probes to measure the height of the spring during the process and adjust the wheel position automatically.

The Importance of Wheel Dressing

Over time, the grinding wheels of a spring grinding machine become "clogged" with metal particles or lose their perfectly flat profile. This phenomenon is known as "glazing." To solve this, the machine is equipped with a dressing unit. This unit uses a harder material to scrape off a thin layer of the wheel, exposing fresh abrasive grains and ensuring the wheel face remains parallel to the loading plate. Regular dressing is the difference between a high-quality spring and one that is rejected during inspection.
